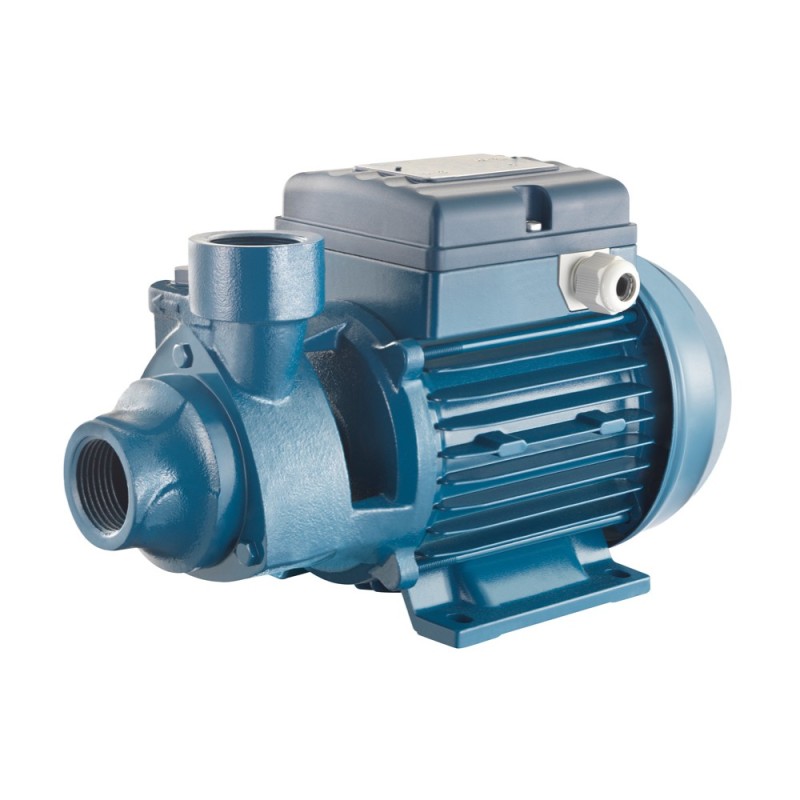

Peripheral Electric Pump PR QB80 230v (1hp)
€87.89
Tax included
Peripheral centrifugal pumps, capable of high pressures and small flow rates, suitable for small pressure groups.
Operation
Fluid: Clean water and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 7 m
Constructive characteristics
Pump housing: Cast iron
Impeller: Brass
Motor shaft: Stainless steel
Mechanical seal: Ceramic / Graphite
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with degree of protection IP44 and class B insulation. Single-phase 230V - 50Hz with permanent condenser. The motors must be thermally protected by the user.
Connections
Aspiration: 1 "
Compression: 1 "
Peripheral centrifugal pumps, capable of high pressures and small flow rates, suitable for small pressure groups.
Operation
Fluid: Clean water and non-aggressive or viscous liquids, free of solid substances.
Maximum fluid temperature: 40 ºC
Maximum suction height: 7 m
Constructive characteristics
Pump housing: Cast iron
Impeller: Brass
Motor shaft: Stainless steel
Mechanical seal: Ceramic / Graphite
Electric Motor
Two-pole induction type, closed and self-ventilated, suitable for continuous operation, with degree of protection IP44 and class B insulation. Single-phase 230V - 50Hz with permanent condenser. The motors must be thermally protected by the user.
Connections
Aspiration: 1 "
Compression: 1 "
